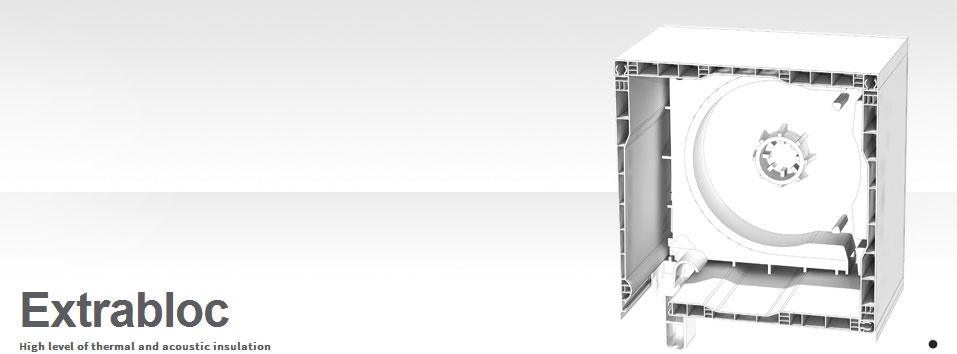

Extrabloc

Tehničke karakteristike

CERTIFICATION AND TESTING OF EXTRABLOC 155
"U" heat-transfer coefficient (UNE-EN 10077-2:2008) 1,8 W / m2K
Ra acoustic isolation (UNE-EN ISO 140-3:1995) 27,3 +- 1,4 dBA
Rw acoustic isolation (UNE-EN ISO 140-3:1995) 28 (-2;-5) dB
Permeability to air (UNE-EN 1026:2000) CLASS 3
Sealing to water (UNE-EN 1027:2000) CLASS 9a
Wind-charge resistance (UNE-EN 12211:2000) P 3 = 3.000 Pa
CERTIFICATION AND TESTING OF EXTRABLOC 170
"U" heat transfer coefficient (UNE-EN 10077-2:2008) 2,0 W / m2K
Ra acoustic isolation (UNE-EN ISO 140-3:1995) 28,0 dBA
Rw acoustic isolation (UNE-EN ISO 140-3:1995) 28 (-1;-5) dB
Permeability to air (UNE-EN 1026:2000) CLASS 2
Sealing to water (UNE-EN 1027:2000) CLASS 9a
Wind-charge resistance (UNE-EN 12211:2000) P 3 = 3.000 Pa
CERTIFICATION AND TESTING OF EXTRABLOC 205
"U" heat transfer coefficient (UNE-EN 10077-2:2008) 2,1 W / m2K
Ra acoustic isolation (UNE-EN ISO 140-3:1995) 28,8 +- 1,1 dBA
Rw acoustic isolation (UNE-EN ISO 140-3:1995) 29 (-1;-5) dB
Permeability to air (UNE-EN 1026:2000) CLASS 3
Sealing to water (UNE-EN 1027:2000) CLASS 9A
Wind-charge resistance (UNE-EN 12211:2000) P 3 = 3.000 Pa
